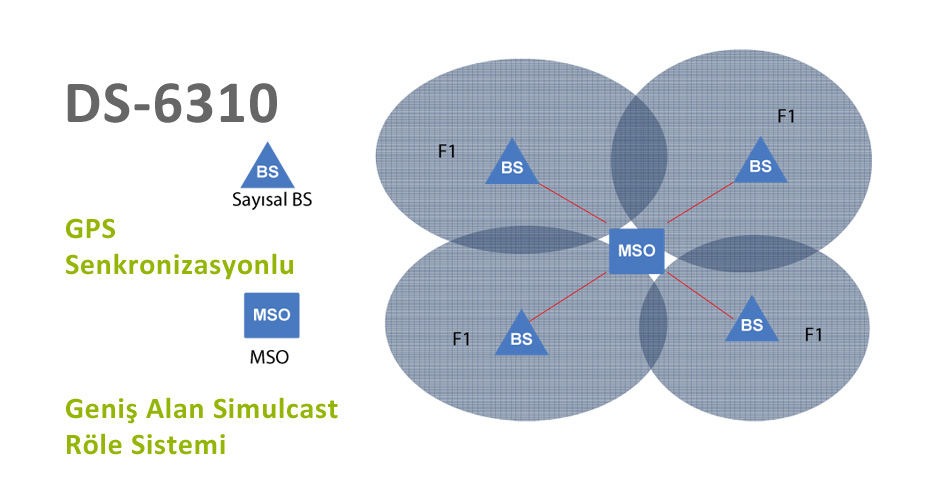

DS-6310 DMR Simulcast Röle İstasyonu

Operating Frequency VHF: 136–174MHz; UHF3: 330–400MHz; UHF1: 400–470MHz
Standard Compliance DMR Tier II
BS Capacity per MSO 100
Carrier Capacity per MSO 200
Subnet Capactiy 99
Carrier Capacity per BS 1 or 2
Channel Spacing ≥12.5kHz
Duplex Spacing VHF≥5.3MHz ; UHF1/UHF3≥10MHz
Multi-access Method TDMA
Modulation 4FSK (index: 0.27)
Modulation Rate 9.6Kbps/carrier
Full Load Power Consumption Single-carrier BS≤200W; Dual-carrier BS≤400W
Operating Humidity 5% to 95%RH
Dimensions (H*W*D) Single-carrier BS:355*425*482.6mm; Dual-carrier BS:900*600*600mm
Weight Single-carrier BS≤50kg; Dual-carrier BS≤110kg
TX Power 1 to 50W (adjustable)
Output Power Tolerance Normal: ±1.5dB; Extreme: –3 to +2dB
Modulation Accuracy 5%
Frequency Offset ±16Hz
Adjacent Channel Power Rejection ≤60dB (12.5kHz)
Static Sensitivity -118dBm@BER5%
Blocking ≥84dB
Co-channel Rejection –12 to 0dB (12.5kHz)
Adjacent Channel Selectivity ≥60dB (12.5kHz)
Intermodulation Response Rejection ≥70dB
Spurious Emission ≤–57dBm@100kHz
